Sun Ultra Series | Dual Output Hybrid Inverter | 8kW | 10kW

Sun Ultra Series

8kW | 10kW | Dual Output Hybrid Inverter

Dual Output Support with Smart Load Management
Two Independent AC Power Sources
Built-in Current Transformer Sensor
Wi-Fi Module for Mobile Monitoring
Parallel Operation up to 6 Units

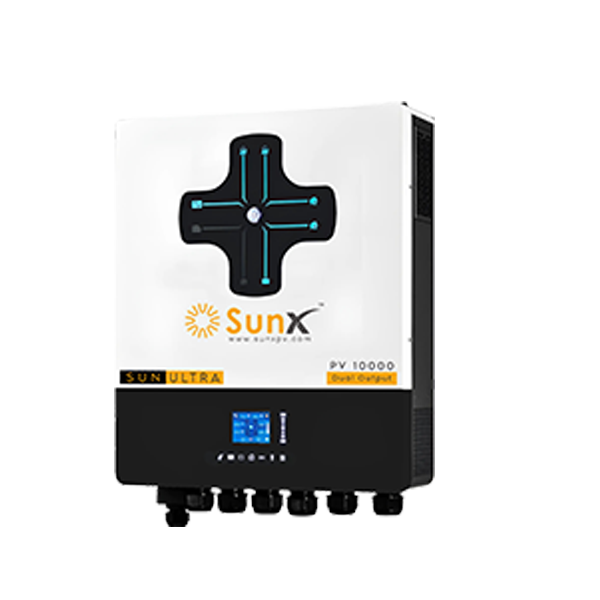

Sun Ultra Series Dual Output Hybrid Inverter

Product Advantage

The Sun Ultra series delivers versatile dual output hybrid inverter technology with smart load management and advanced safety features. Featuring 93% efficiency, pure sine wave output, and built-in Wi-Fi monitoring, it's the perfect solution for both residential and commercial energy applications requiring reliable power management.

Advanced MPPT Technology for Optimal Solar Power Utilization

Over 94% Efficiency in Battery Mode

Pure Sine Wave Output for Clean and Stable Power

Seamless Transfer Time (10ms for Computers, 20ms for Household)

Parallel Operation Support for System Expansion

LCD Display & Real-Time Monitoring

SUNX

Product Parameters

Sun-Ultra 8kW

Dual Output Hybrid Inverter

OUTPUT SPECIFICATIONS

Rated Power [W]	8000
Surge Power [VA]	16000
Input Voltage [VAC]	230
Voltage Range [VAC]	170-280 (PC) / 90-280 (Home)
Frequency [Hz]	50/60 (Auto sensing)
Efficiency	93%
Transfer Time	10ms (PC) / 20ms (Home)
Waveform	Pure Sine Wave

SOLAR (PV) CHARGING SPECIFICATIONS

BATTERY & CHARGING SPECIFICATIONS

PHYSICAL & ENVIRONMENTAL

Sun-Ultra 10kW

Dual Output Hybrid Inverter

OUTPUT SPECIFICATIONS

Rated Power [W]	11000
Surge Power [VA]	22000
Voltage Range [VAC]	170-280 (PC) / 90-280 (Home)
Frequency [Hz]	50/60 (Auto sensing)
Efficiency	93%
Transfer Time	10ms (PC) / 20ms (Home)
Waveform	Pure Sine Wave

SOLAR (PV) CHARGING SPECIFICATIONS

BATTERY & CHARGING SPECIFICATIONS

PHYSICAL & ENVIRONMENTAL

Downloads

Access technical documentation and resources

Document Type	Description	Language	Download
Product Datasheet	Complete technical specifications and performance data	English	PDF
Installation Manual	Step-by-step installation and commissioning guide	English	PDF
Product Brochures	Product Brochures and Digital Design	Multiple	PDF
SunX Loyalty App	Install Sunx Products, SCAN Serial # and Earn Cash Reward	English	Get App
SunX Cloud App	Mobile monitoring and control application	Multiple	Get App

Find Your SunX Support

Find a Distributor

Reliable service and product support

Find Distributor

Find an Installer

Find your nearest SunX premium installer

Find Installer

Warranty Inquiry

Quick Access to Coverage Details & Support

Check Warranty

Solar Charger Type	MPPT
Max PV Array Power [W]	10000 (5000W x 2)
MPPT Range [VDC]	90-450
Max PV Input Current [A]	27A x 2 (MAX 40A)
Max Solar Charge Current [A]	150
Max AC Charge Current [A]	120

Battery Voltage [VDC]	48
Floating Charge Voltage [VDC]	54
Overcharge Protection [VDC]	63
Max AC Charge Current [A]	120
Max Charge Current [A]	150

Dimensions (D x W x H) [mm]	145 x 348 x 553.6
Net Weight [kg]	18.4
Operating Temperature [°C]	-10 to 50
Storage Temperature [°C]	-15 to 60
Humidity [%]	5-95 (Non-condensing)
Communication Interface	USB/RS232/RS485/WiFi

PV Charging Method	MPPT
Max PV Array Power [W]	12000 (6000W x 2)
MPPT Voltage Range [VDC]	90-450
Max PV Open Circuit Voltage [VDC]	500
Max PV Input Current [A]	30 x 2
Max Solar Charge Current [A]	150

Rated Voltage [VDC]	48
Constant Charging Voltage [VDC]	56.4
Float Charging Voltage [VDC]	54
Max AC Charge Current [A]	120
Max Total Charge Current [A]	150
Peak Efficiency (Battery Mode) [%]	>94
Parallel Operation Support	Yes
